XML API

A API designed to take up large instant volumes of SMSes at one go. You can send 1000′s of SMS'es each having variable message text in one submission. You can send SMS, Schedule SMS as well as get delivery reports using our SMS XML API.



SMS Submission using XML(Sending Single Message to Multiple Mobile Numbers)

To send SMS using XML the user has to create an interface (form) having a form element with name as 'Frmsms'.
e.g. Post/Submit your case-sensitive XML through that form as HTTP post to the following URL: http://api.urlsms.com/SendXMLsms.aspx

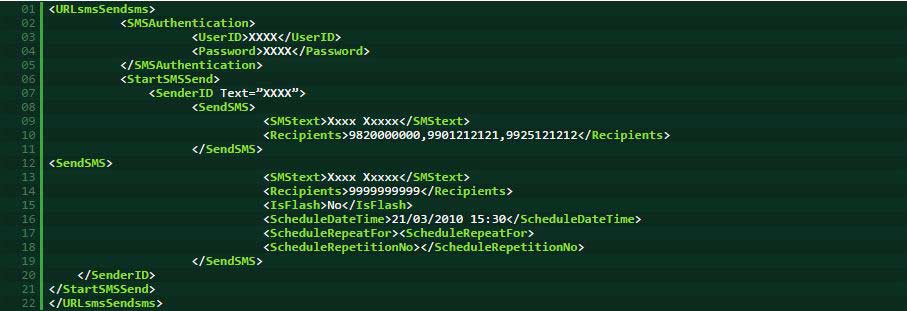

ILLUSTRATIVE EXAMPLE

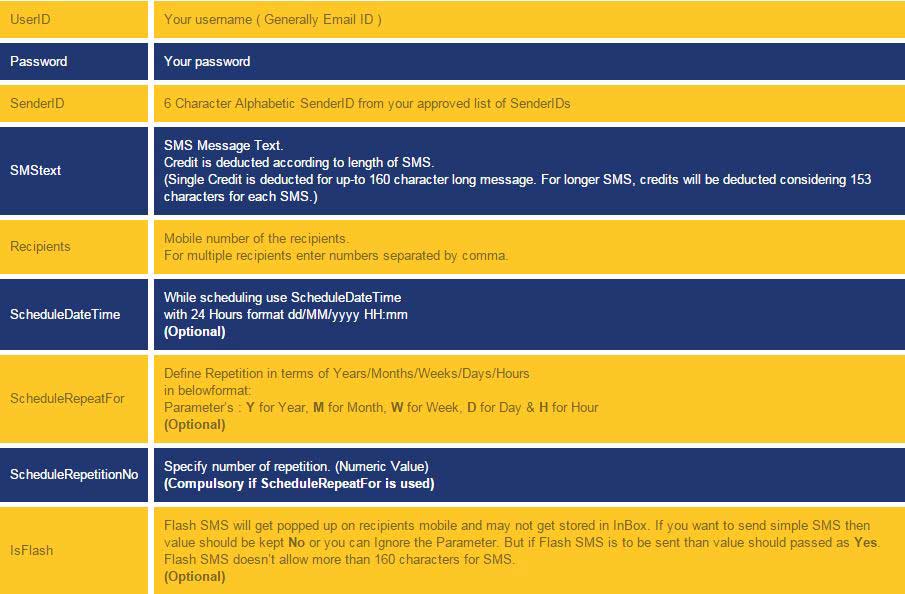

Description of the XML Parameters & format:

Note: The SenderID refers to the Alphanumeric Identity of the Sender. For all SMS sent SenderID of maximum 6 characters is allowed if SMS is of Transactional category. You can use only Alphabets without space or special characters. You can customize your own unique SenderID for all Transactional SMS messages you send. The SenderID needs to get approved before using. For Promotional SMS, random numeric SenderID will appear.

For Flash SMS if isflash value is "Yes", sms will be submitted as Flash SMS. If XML Tag related to Flash SMS is not used / submitted, SMS will be treated as simple SMS.

Scheduling parameters are optional. If you use ScheduleDateTime, SMS will get scheduled as per parameter passed. You can also repeat your schedule by using ScheduleRepeateFor parameter as described above and can even pass number of repeats using ScheduleRepetitionNo.

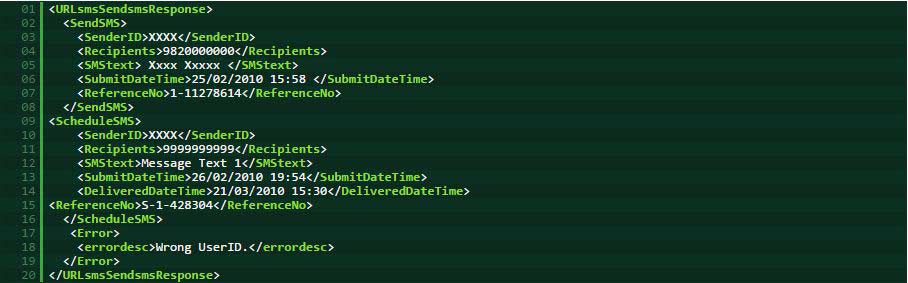

We give you response in below format once your SMS submission is successful:

SMS Delivery Report using XML

To get delivery report using XML the user has to create an interface (form) having a form element with name as 'Frmdr'.

e.g. Post/Submit your case-sensitive XML through that form as HTTP post to the following URL:

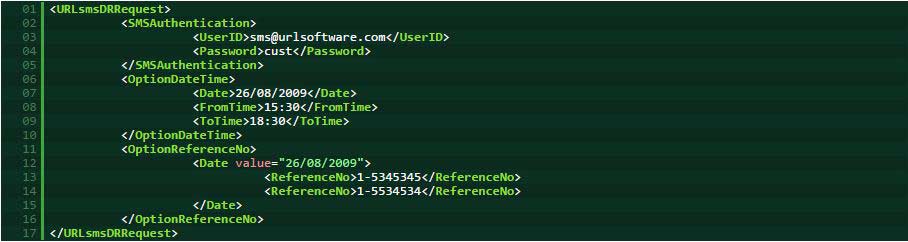

ILLUSTRATIVE EXAMPLE

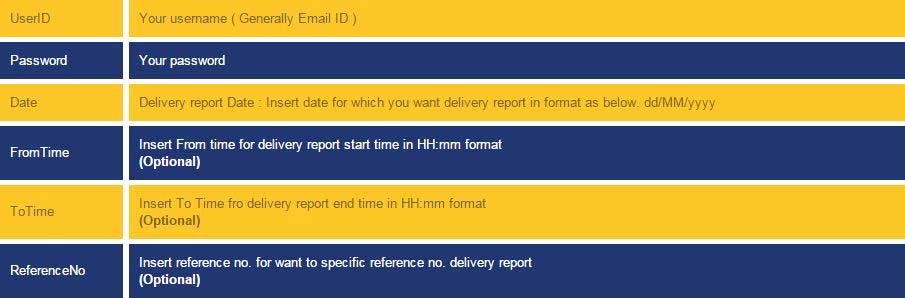

Description of the XML format and parameter:

Note: FromTime as well as ToTime is Optional & If you do not specify those parameters, you get full day delivery report.

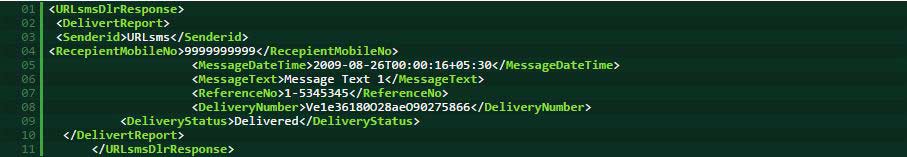

Delivery report response format:
